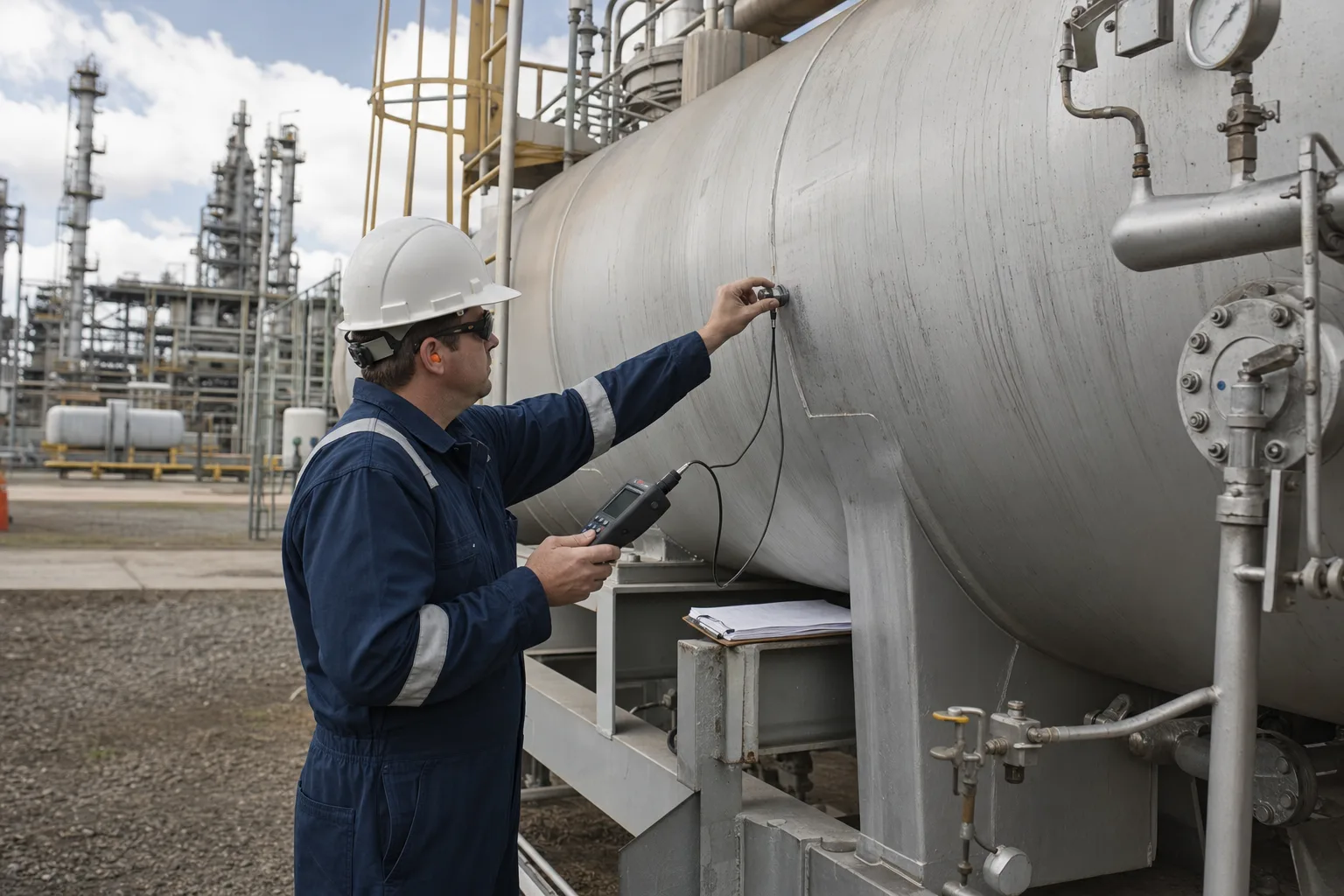

API 510 — Pressure Vessels
- In-service and out-of-service inspection
- Thickness and corrosion assessment
- RBI support data collection
API 510 / API 570 / API 653 / STI SP001 / Corrosion Mapping / MFL / Vacuum Box / Isometric/CAD Drawings
Mechanical Integrity
Mechanical integrity programs keep pressure equipment operating safely between turnarounds. SIS supports API 510 vessel, API 570 piping, and API 653 tank integrity work, STI SP001 aboveground storage tank assessments, and isometric/CAD documentation that gives your engineering team accurate as-built records.
Mechanical integrity services at Superior Integrity Services support API 510 pressure vessel, API 570 piping, and API 653 storage tank inspection programs, plus STI SP001 aboveground storage tank assessments and isometric/CAD documentation. The work keeps pressure equipment compliant between turnarounds and gives engineering teams accurate as-built records and IMP-ready summary packages.
Methods & capabilities
What this service covers

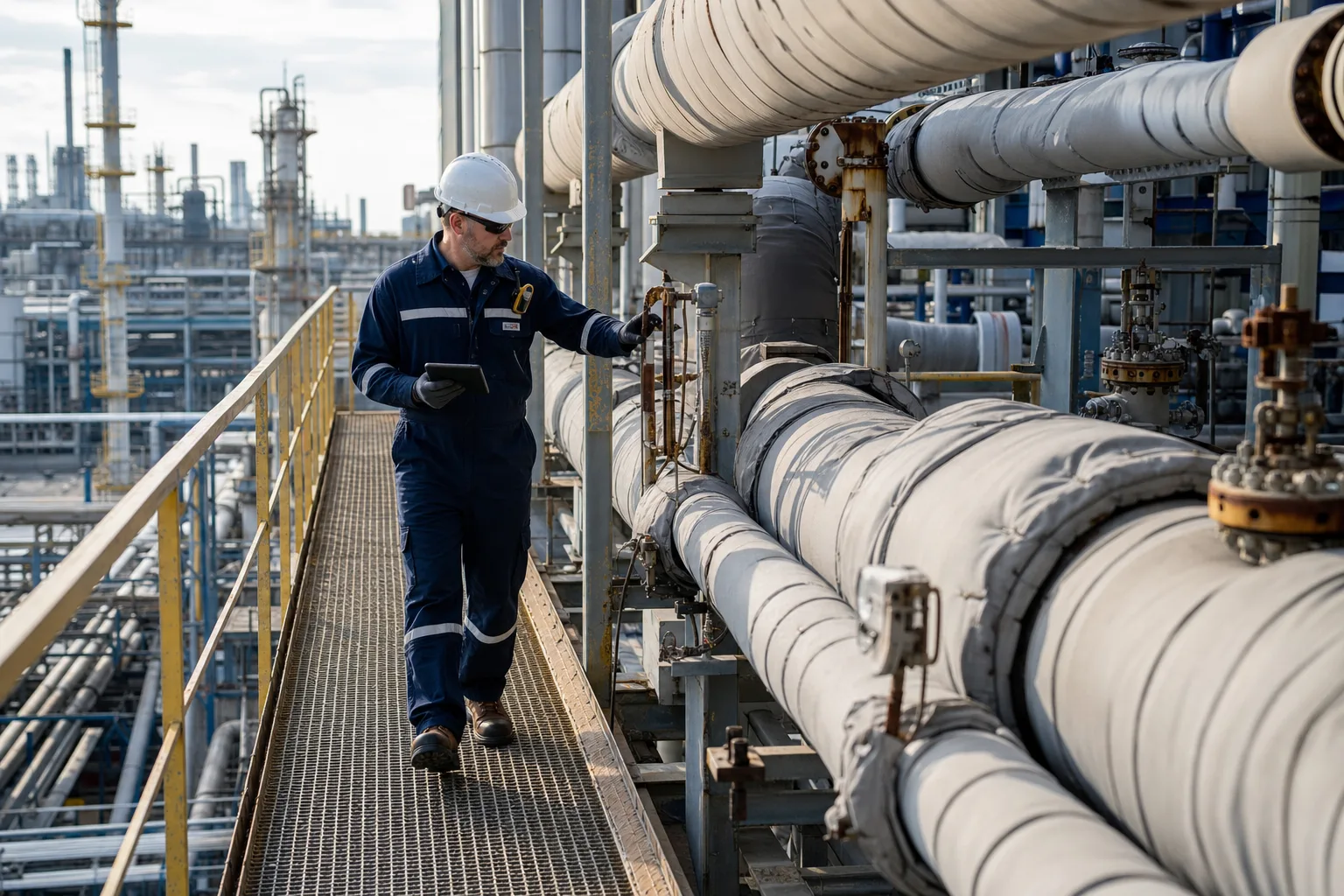

API 570 — Piping
- Piping circuit inspection
- Corrosion monitoring points
- Turnaround scope support

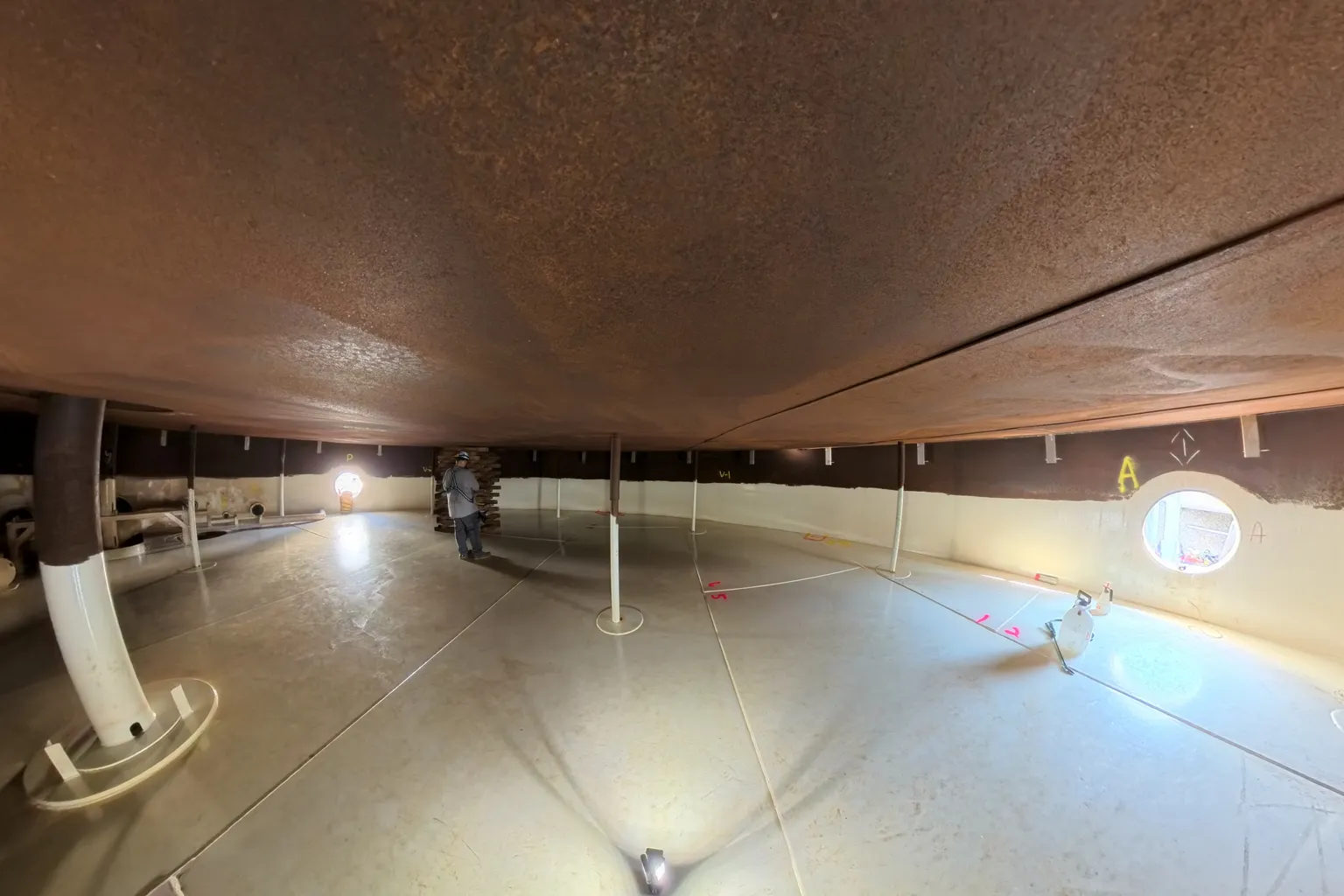

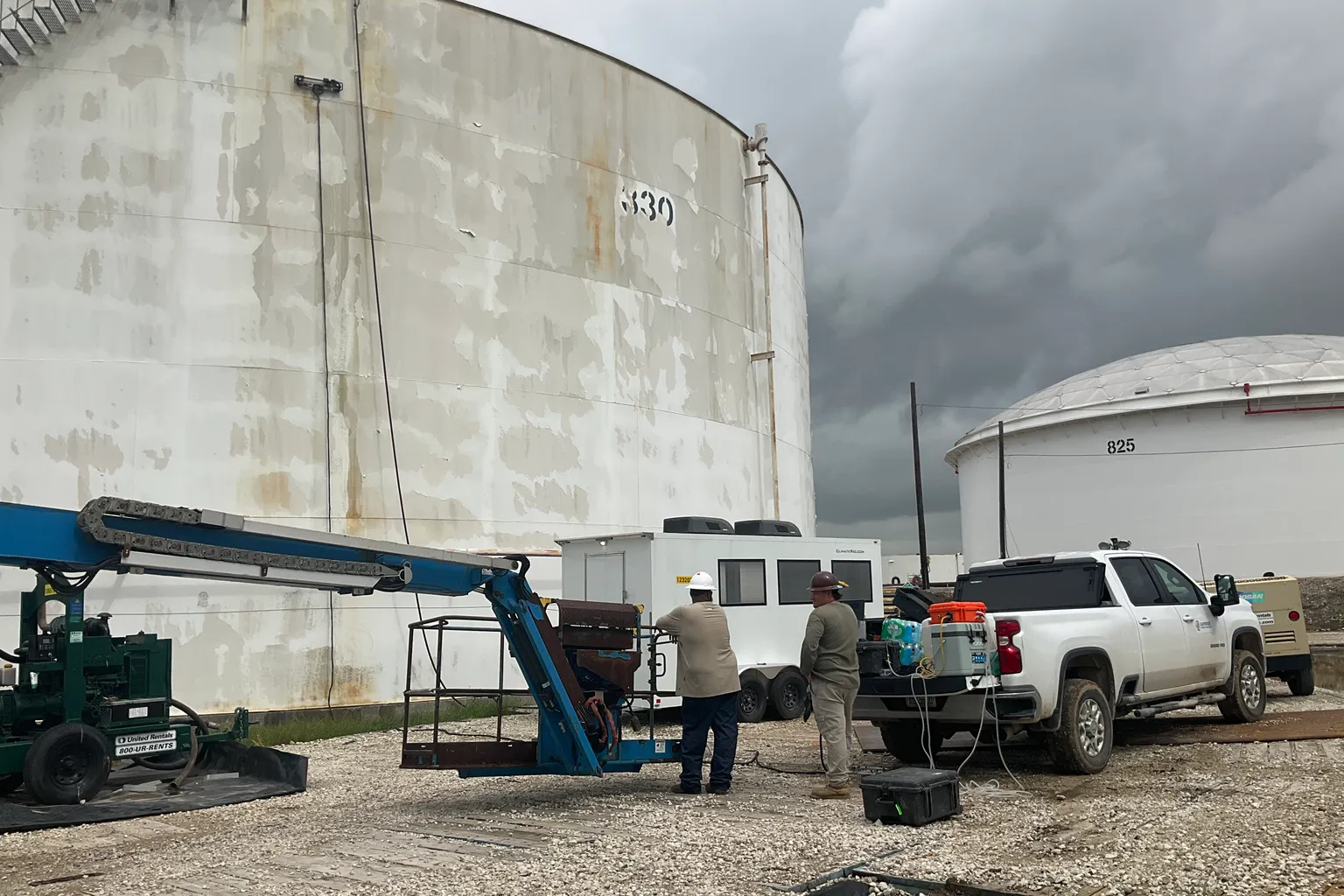

API 653 — Storage Tanks
- Tank integrity assessments
- Shell and floor evaluation
- Repair recommendation support
STI SP001
- Small shop-built tank inspection
- Routine maintenance programs

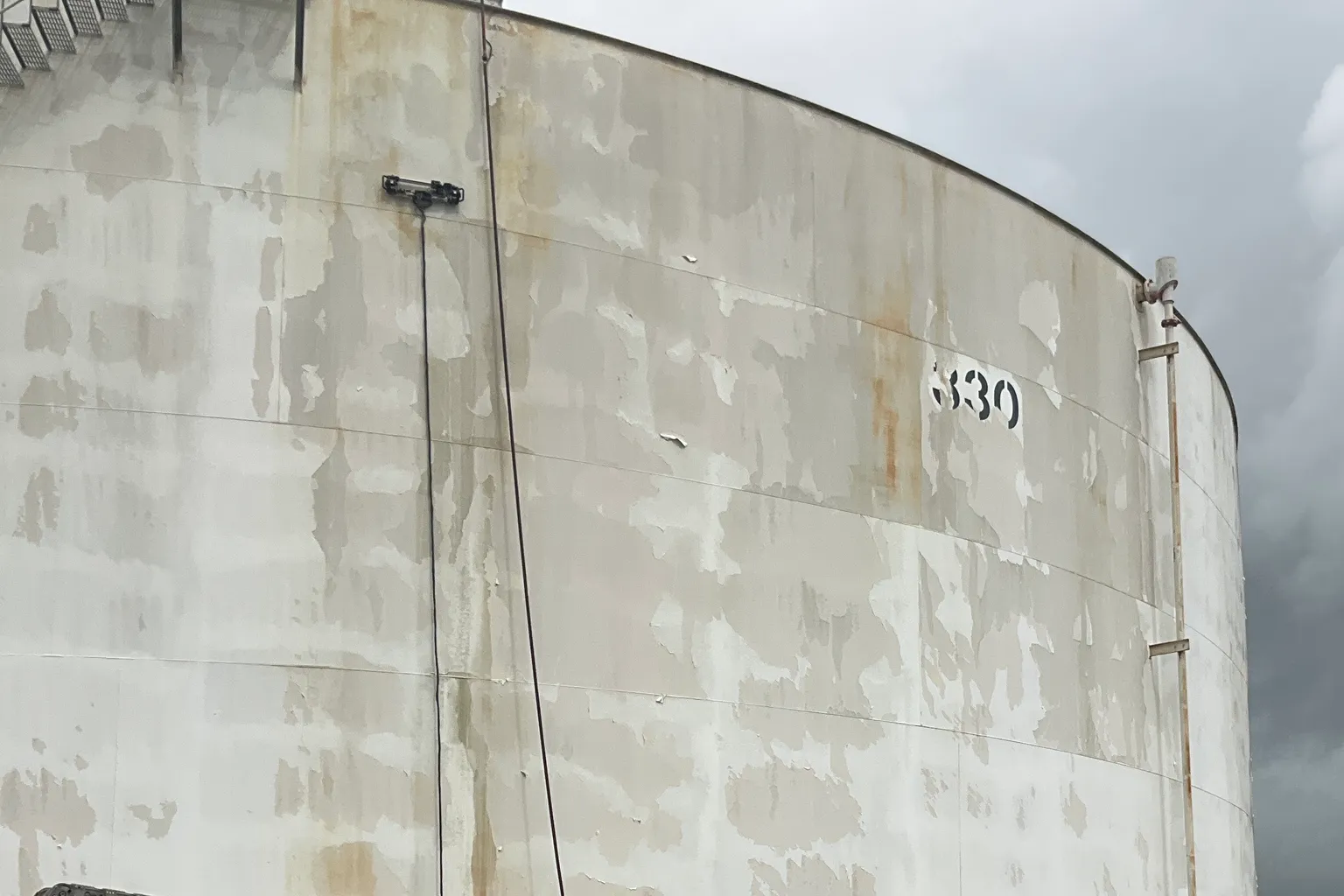

Corrosion Mapping
- Automated thickness grids
- C-scan corrosion profiles
- Remaining-life assessment inputs

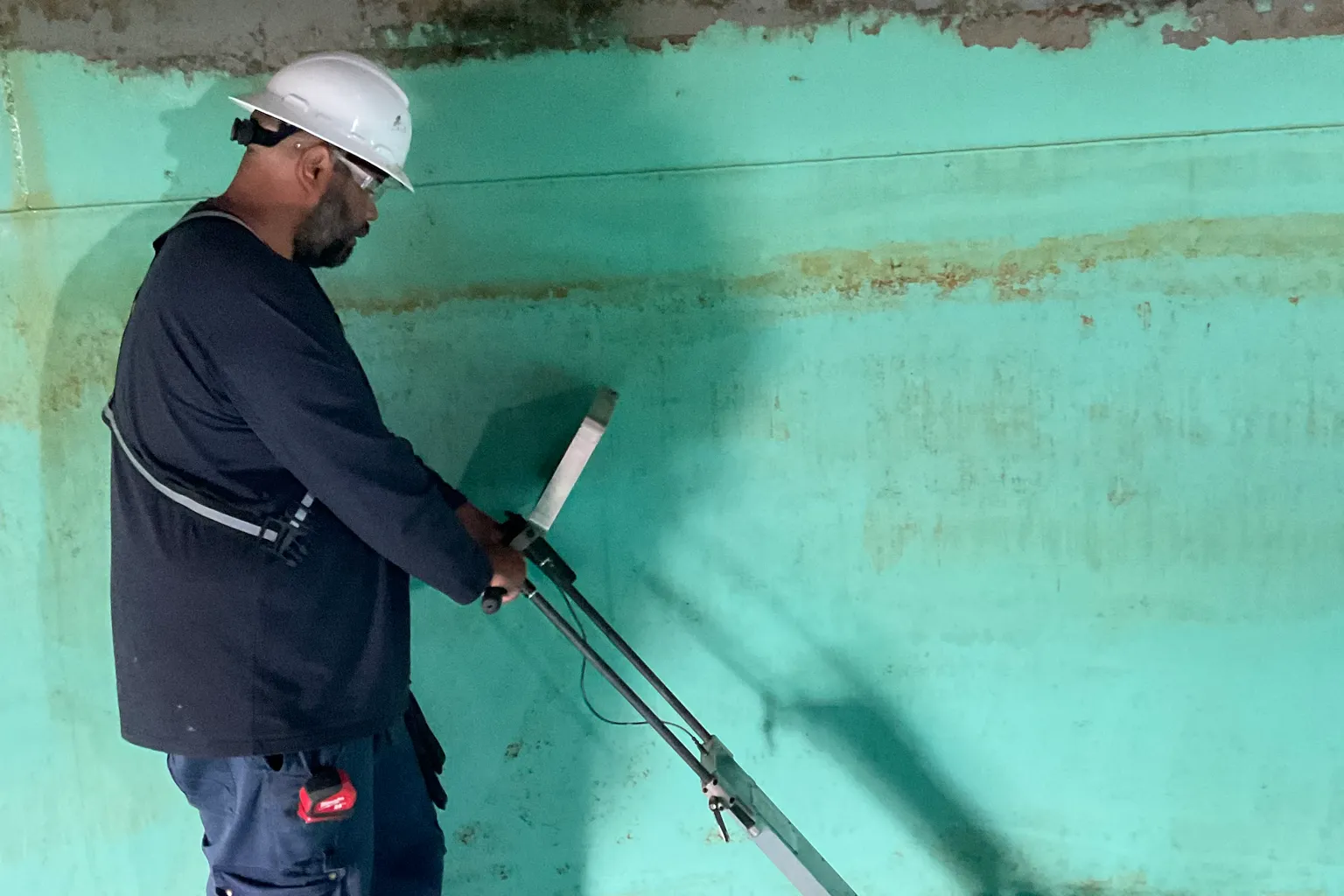

Magnetic Flux Leakage (MFL)
- Floor and plate screening
- Corrosion and pit detection

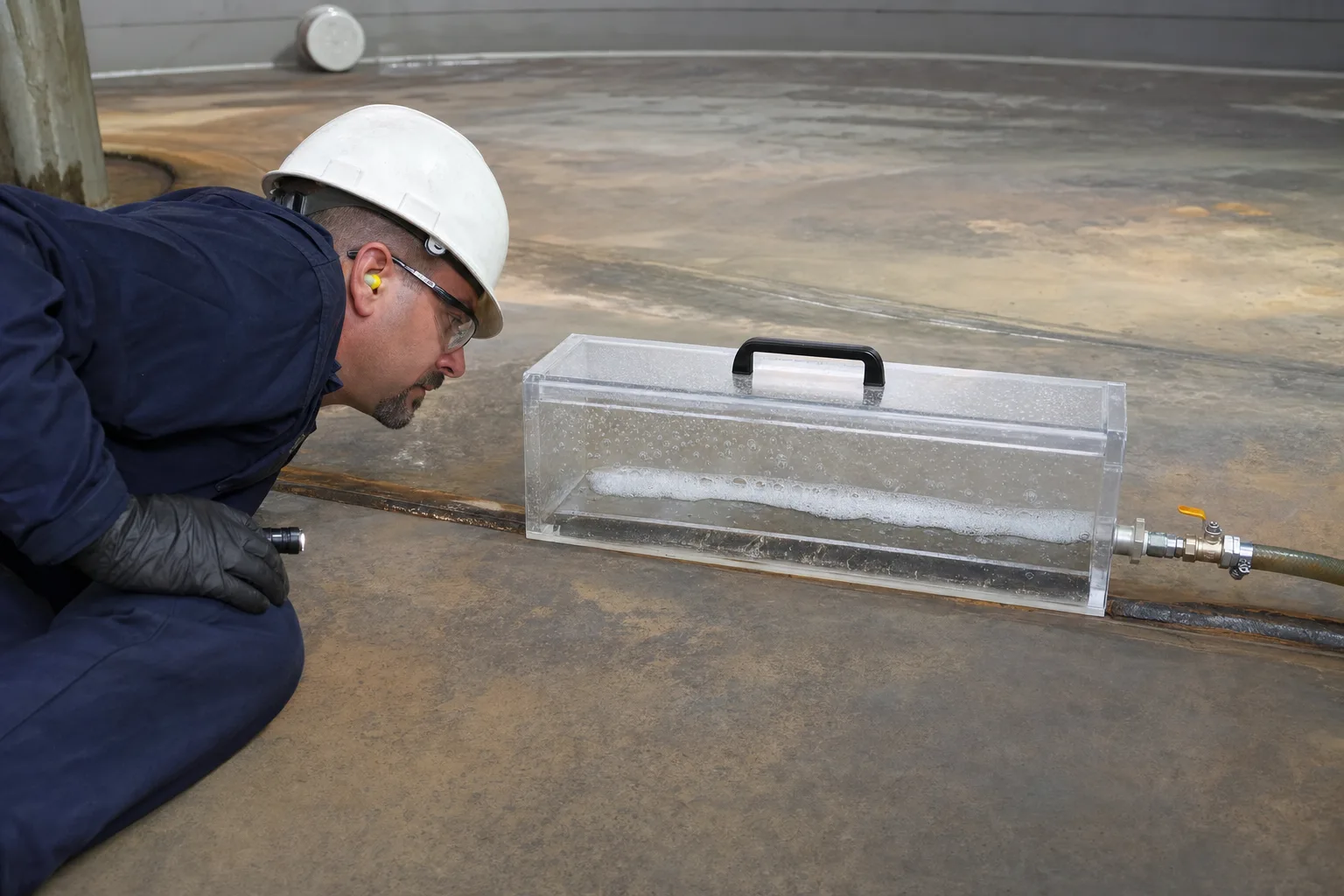

Vacuum Box Testing
- Weld and seam leak detection
- Tank floor and liner checks
- Field and shop applications

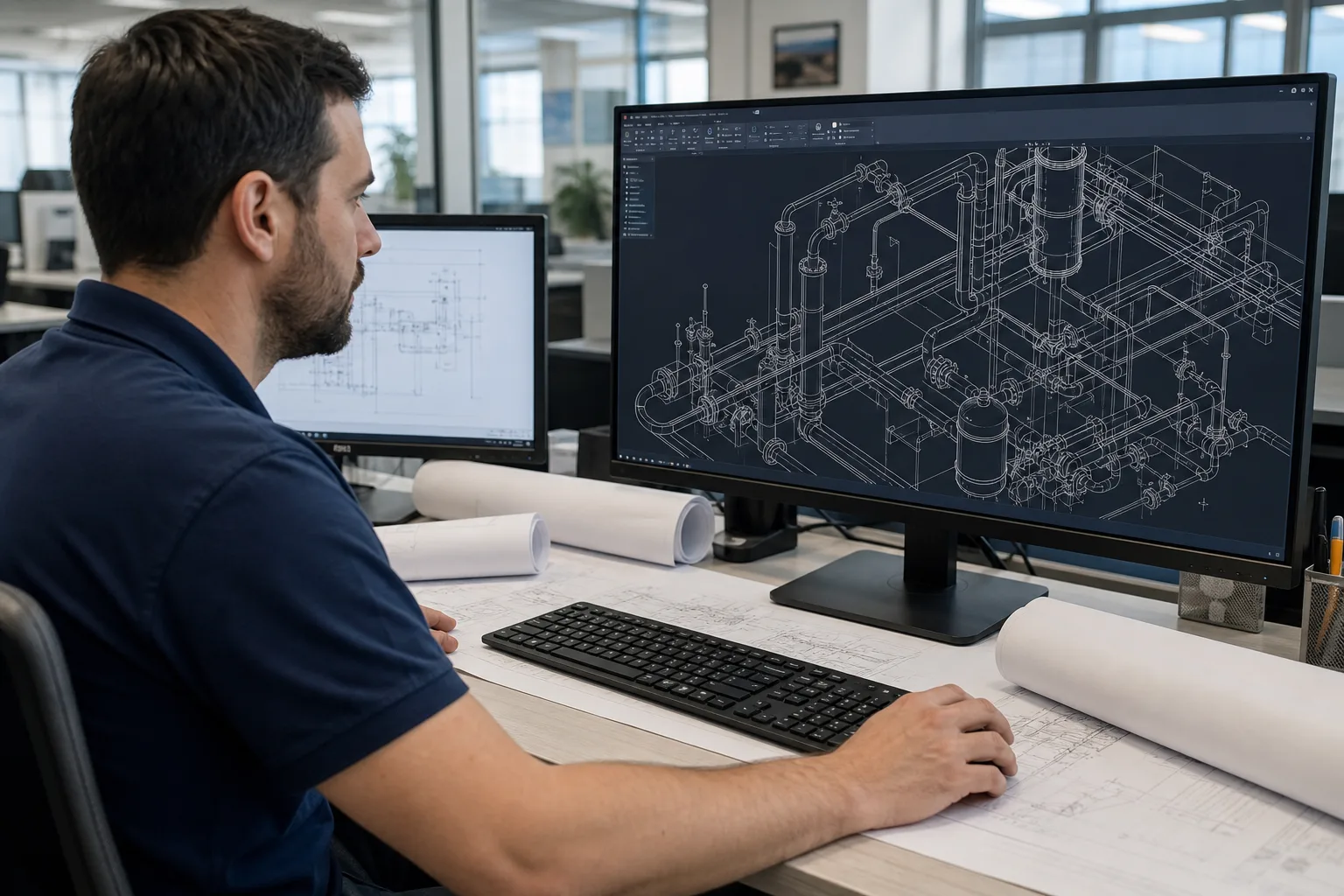

Isometric/CAD Drawings
- Isometric piping documentation
- As-built updates
- CAD deliverables for engineering
Best for
- Refinery and petrochemical turnarounds
- Tank farm integrity programs
- Piping circuit condition assessment
- As-built documentation updates
Standards we work to
- API 510
- API 570
- API 653
- STI SP001
- ASNT SNT-TC-1A
How a scope runs
Field workflow
Mobilize
MI-qualified technicians and documentation staff deploy with scope and code requirements confirmed.
Inspect
Vessel, piping, or tank examinations are performed per API and client procedures.
Review
Findings are evaluated against acceptance criteria and repair timelines.
Report
Code-compliant reports and drawings are delivered for engineering disposition.
What you receive
Deliverables
- Inspection reports aligned to API codes
- Thickness and corrosion records
- Isometric and CAD documentation
- RBI and IMP-ready summary packages
Mechanical integrity at SIS
Our mechanical integrity work supports the programs that keep pressure equipment compliant between outages. Whether you need API 570 piping circuits inspected during a turnaround or isometric updates after a modification project, SIS delivers documented results your integrity engineers can act on.
Common questions
Mechanical Integrity FAQs
What API inspection codes does SIS mechanical integrity cover?
SIS supports API 510 pressure vessel inspection, API 570 piping circuit inspection, and API 653 storage tank integrity assessments, plus STI SP001 for small shop-built tanks — all performed to code and client procedures.
What does an API 570 piping inspection include?
API 570 work covers piping circuit inspection, corrosion monitoring points, and turnaround scope support, with thickness and corrosion records delivered for engineering disposition.
Does SIS provide isometric and CAD drawings?
Yes. SIS produces isometric piping documentation, as-built updates, and CAD deliverables so your engineering team has accurate records after inspections or modification projects.
What is STI SP001 and when does it apply?
STI SP001 is the inspection standard for small shop-built aboveground storage tanks. SIS performs SP001 inspections as part of routine maintenance programs alongside API 653 work on larger field-erected tanks.
What deliverables come with a mechanical integrity scope?
Deliverables include inspection reports aligned to API codes, thickness and corrosion records, isometric and CAD documentation, and RBI and IMP-ready summary packages.
Related services
Often paired with Mechanical Integrity
UTSW / GWT / PAUT / ToFD / AUT Corrosion Mapping / ET / XRF / LIBS / 3D Laser / MFL

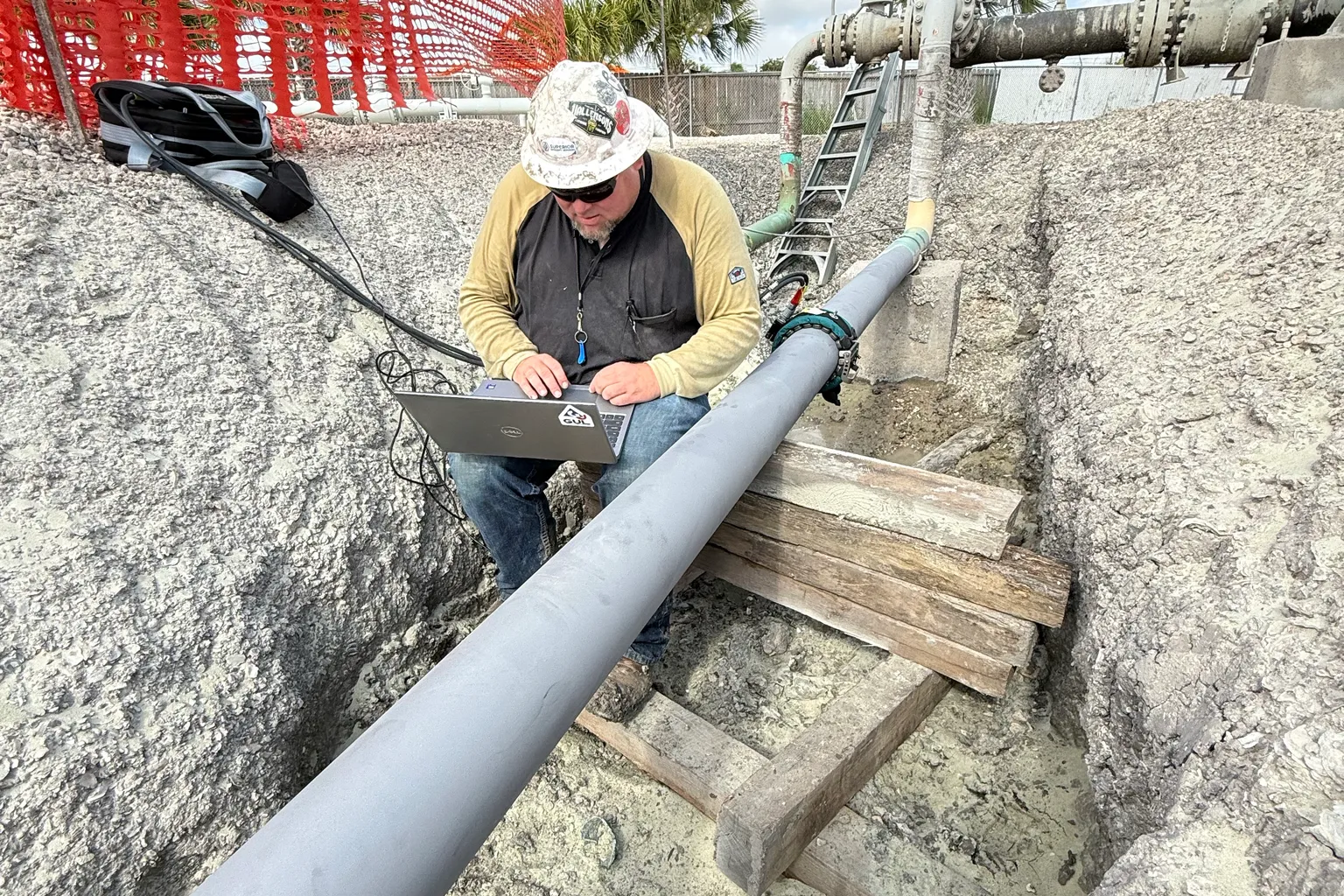

Advanced NDT
Phased array, time-of-flight diffraction, guided shearwave, corrosion mapping, PMI, eddy current, and laser scanning for complex inspection programs requiring advanced ultrasonic and electromagnetic techniques.
In-service inspections / Out-of-service inspections / MFL floor mapping / Calibrations / Surveys
Tank Services
In-service and out-of-service tank inspection, MFL floor mapping, calibrations, and surveys for aboveground storage tanks and terminal assets.
RT / CR / DR / PT / MT / UT / VT
Conventional NDT
Radiography, penetrant, magnetic particle, ultrasonic, and visual testing for welds and components in shop and field — documented to API and ASME standards.
